Rulman Yatakları SNA 500-600

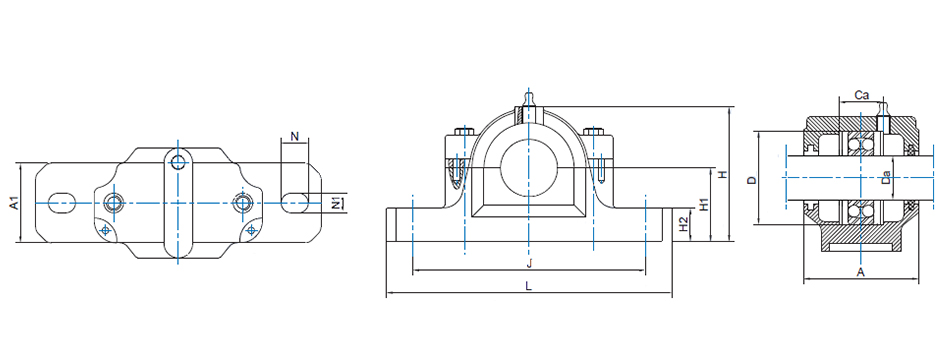

	HOUSING NO	HOUSING WITH DOUBLE LIP-SEALS	DIMENSIONS													BEARING NO	ADAPTER NO	LOCATING RING
	HOUSING NO	HOUSING WITH DOUBLE LIP-SEALS	Da	A	A1	Ca	D	H	H1	H2	J	L	N	N1	Kg	BEARING NO	ADAPTER NO	LOCATING RING
	SNA 505	505 TG	20	67	46	25	52	74	40	19	130	165	20	15	1.50	1205 K 2205 K 22205 K	H 205 H 305 H 305	2 FRB 5.00 52 2 FRB 3.50 52 2 FRB 3.50 52
SNA 506 - 605	SNA 605	605 TG	20	77	52	32	62	89	50	22	150	185	20	15	1,65	1305 K 2305 K	H 305 H 2305	2 FRB 7.50 62 2 FRB 4.00 62
SNA 506 - 605	SNA 506	506 TG	25	77	52	32	62	89	50	22	150	185	20	15	1,65	1206 K 2206 K 22206 K	H 206 H 306 H 306	2 FRB 8.00 62 2 FRB 6.00 62 2 FRB 6,00 62
SNA 507 - 606	SNA 606	606 TG	25	82	52	34	72	93	50	22	150	185	20	15	2.50	1306 K 2306 K	H 306 H 2306	2 FRB 7.50 72 2 FRB 3.50 72
SNA 507 - 606	SNA 507	507 TG	30	82	52	34	72	93	50	22	150	185	20	15	2,50	1207 K 2207 K 22207 K	H 207 H 307 H 307	2 FRB 8.50 72 2 FRB 5.50 72 2 FRB 5.50 72
SNA 508 - 607	SNA 607	607 TG	30	85	60	39	80	107	60	25	170	205	20	15	3,00	1307 K 2307 K	H 307 H 2307	2 FRB 9.00 80 2 FRB 4.00 80
SNA 508 - 607	SNA 508	508 TG	35	85	60	39	80	107	60	25	170	205	20	15	3,00	1208 K 2208 K 22208 K	H 208 H 308 H 308	2 FRB 10.50 80 2 FRB 8.00 80 2 FRB 8.00 80
	SNA 509	509 TG	40	85	60	30	85	109	60	25	170	205	20	15	3,20	1209 K 2209 K 22209 K	H 209 H 309 H 309	2 FRB 5.50 85 2 FRB 3.50 85 2 FRB 3.50 85
SNA 510 - 608	SNA 608	608 TG	35	90	60	41	90	113	60	25	170	205	20	15	3.70	1308 K 2308 K 21308 K 22308 K	H 308 H 2308 H 308 H 2308	2 FRB 9.00 90 2 FRB 4.00 90 2 FRB 9.00 90 2 FRB 4.00 90
SNA 510 - 608	SNA 510	510 TG	45	90	60	41	90	113	60	25	170	205	20	15	3,70	1210 K 2210 K 22210 K	H 210 H 310 H 310	2 FRB 10.50 90 2 FRB 9.00 90 2 FRB 9.00 90

	HOUSING NO	HOUSING WITH DOUBLE LIP-SEALS	DIMENSIONS													BEARING NO	ADAPTER NO	LOCATING RING
	HOUSING NO	HOUSING WITH DOUBLE LIP-SEALS	Da	A	A1	Ca	D	H	H1	H2	J	L	N	N1	Kg	BEARING NO	ADAPTER NO	LOCATING RING
SNA 511 - 609	SNA 609	609 TG	40	95	70	44	100	127	70	28	210	255	24	18	5,00	1309 K 2309 K 21309 K 22309 K	H 309 H 2309 H 309 H 2309	2 FRB 9.50 100 2 FRB 4.00 100 2 FRB 9.50 100 2 FRB 4.00 100
SNA 511 - 609	SNA 511	511 TG	50	95	70	44	100	127	70	28	210	255	24	18	5,00	1211 K 2211 K 22211 K	H 211 H 311 H 311	2 FRB 11.5 100 2 FRB 9.50 100 2 FRB 9.50 100
SNA 512 - 610	SNA 610	612 TG	45	105	70	48	110	133	70	30	210	255	24	18	5.75	1310 K 2310 K 21310 K 22310 K	H 309 H 2309 H 309 H 2309	2 FRB 10.50 110 2 FRB 4.00 110 2 FRB 10.50 110 2 FRB 4.00 110
SNA 512 - 610	SNA 512	512 TG	55	105	70	48	110	133	70	30	210	255	24	18	5.75	1212 K 2212 K 22212 K	H 212 H 312 H 312	2 FRB 13.00 110 2 FRB 10.00 110 2 FRB 10.00 110
SNA 513 - 611	SNA 611	611 TG	50	110	80	51	120	148	80	30	230	275	24	18	7,00	1311 K 2311 K 21311 K 22311 K	H 311 H 2311 H 311 H 2311	2 FRB 11.00 120 2 FRB 4.00 120 2 FRB 11.00 120 2 FRB 4.00 120
SNA 513 - 611	SNA 513	513 TG	60	110	80	51	120	148	80	30	230	275	24	18	7,00	1213 K 2213 K 22213 K	H 213 H 313 H 313	2 FRB 14.00 120 2 FRB 10.00 120 2 FRB 10.00 120
SNA 515 - 612	SNA 612	612 TG	55	115	80	56	130	154	80	30	230	280	24	18	7.50	1312 K 2312 K 21312 K 22312 K	H 312 H 2312 H 312 H 2312	2 FRB 12.50 130 2 FRB 5.00 130 2 FRB 12.50 130 2 FRB 5.00 130
SNA 515 - 612	SNA 515	515 TG	65	115	80	56	130	154	80	30	230	280	24	18	7.50	1215 K 2215 K 22215 K	H 215 H 315 H 315	2 FRB 15.50 130 2 FRB 12.50 130 2 FRB 12.50 130
SNA 516 - 613	SNA 613	613 TG	60	120	90	58	140	175	95	32	260	315	28	22	10,2	1313 K 2313 K 21313 K 22313 K	H 313 H 2313 H 313 H 2313	2 FRB 12.50 140 2 FRB 5.00 140 2 FRB 12.50 140 2 FRB 5.00 140
SNA 516 - 613	SNA 516	516 TG	70	120	90	58	140	175	95	32	260	315	28	22	10,2	1216 K 2216 K 22216 K	H 216 H 316 H 316	2 FRB 16.00 140 2 FRB 12.50 140 2 FRB 12.50 140

	HOUSING NO	HOUSING WITH DOUBLE LIP-SEALS	DIMENSIONS													BEARING NO	ADAPTER NO	LOCATING RING
	HOUSING NO	HOUSING WITH DOUBLE LIP-SEALS	Da	A	A1	Ca	D	H	H1	H2	J	L	N	N1	Kg	BEARING NO	ADAPTER NO	LOCATING RING
	SNA 517	517 TG	75	125	90	61	150	183	95	32	260	320	28	22	11,5	1217 K 2217 K 22217 K	H 217 H 317 H 317	2 FRB 16.50 150 2 FRB 12.50 150 2 FRB 12.50 150
SNA 518 - 615	SNA 615	615 TG	65	140	100	65	160	193	100	35	290	345	28	22	14,00	1315 K 2315 K 21315 K 22315 K	H 315 H 2315 H 315 H 2315	2 FRB 14.00 160 2 FRB 5.00 160 2 FRB 14.00 160 2 FRB 5.00 160
SNA 518 - 615	SNA 518	518 TG	80	140	100	65	160	193	100	35	290	345	28	22	14,00	1218 K 2218 K 22218 K	H 218 H 318 H318	2 FRB 17.50 160 2 FRB 12.50 160 2 FRB 12.50 160
SNA 519 - 616	SNA 616	616 TG	70	145	100	68	170	210	112	35	290	345	28	22	16,25	1316 K 2316 K 21316 K 22316 K	H 316 H 2316 H 316 H 2316	2 FRB 14.50 170 2 FRB 5.00 170 2 FRB 14.50 170 2 FRB 5.00 170
SNA 519 - 616	SNA 519	519 TG	85	145	100	68	170	210	112	35	290	345	28	22	16,25	1219 K 2219 K 22219 K	H 219 H 319 H 319	2 FRB 18.00 170 2 FRB 12.50 170 2 FRB 12.50 170
SNA 520 - 617	SNA 617	617 TG	75	160	110	70	180	215	112	40	320	380	32	25	20	1317 K 2317 K 21317 K 22317 K	H 317 H 2317 H 317 H 2317	2 FRB 14.50 180 2 FRB 5.00 180 2 FRB 14.50 180 2 FRB 5.00 180
SNA 520 - 617	SNA 520	520 TG	90	160	110	70	180	215	112	40	320	380	32	25	20	1220 K 2222 K 22220 K 23220 K	H 220 H 320 H 320 H 2320	2 FRB 18.00 180 2 FRB 12.00 180 2 FRB 12.00 180 2 FRB 4.85 180
	SNA 618	618 TG	80	155	110	95	190	229	112	40	320	380	32	25	22	1318 K 21318 K 2318 K	H 318 H 318 H 2318	2 FRB 15.50 190 2 FRB 15.50 190 2 FRB 5.00 190

	HOUSING NO	HOUSING WITH DOUBLE LIP-SEALS	DIMENSIONS													BEARING NO	ADAPTER NO	LOCATING RING
	HOUSING NO	HOUSING WITH DOUBLE LIP-SEALS	Da	A	A1	Ca	D	H	H1	H2	J	L	N	N1	Kg	BEARING NO	ADAPTER NO	LOCATING RING
SNA 522 - 619	SNA 619	619 TG	85	175	120	80	200	239	125	45	350	410	32	25	22	1319 K 2319 K 21319 K 22319 K	H 319 H 2319 H 319 H 2319	2 FRB 17.50 200 2 FRB 6.50 200 2 FRB 17.50 200 2 FRB 6.50 200
SNA 522 - 619	SNA 522	522 TG	100	175	120	80	200	239	125	45	350	410	32	25	25,40	1222 K 2222 K 22222 K 23222 K	H 222 H 322 H 322 H 2322	2 FRB 21.00 200 2 FRB 13.50 200 2 FRB 13.50 200 2 FRB 5.10 200
SNA 524 - 620	SNA 620	620 TG	90	185	120	86	215	271	140	45	350	410	32	26	26.2	1320 K 2320 K 21320 K 22320 K	H 320 H 2320 H 320 H 2320	2 FRB 19.50 215 2 FRB 6.50 215 2 FRB 19.50 215 2 FRB 6.50 215
SNA 524 - 620	SNA 524	524 TG	110	185	120	86	215	271	140	45	350	410	32	26	34	1224 K 22224 K 23224 K	H 3124 H 3124 H 2324	2 FRB 22.00 215 2 FRB 14.00 215 2 FRB 5.00 215
	SNA 526	526 TG	115	190	130	90	230	290	150	50	380	445	45	28	39,65	22226 K 23226 K	H 3126 H 2326	2 FRB 13.00 230 2 FRB 5.00 230
	SNA 528	528 TG	125	205	150	98	250	302	150	50	420	500	42	35	48,50	22228 K 23228 K	H 3128 H 2328	2 FRB 15.00 250 2 FRB 5.00 250
	SNA 530	530 TG	135	220	160	106	270	323	160	60	450	530	42	35	57,70	22230 K 23230 K	H 3130 H 2330	2 FRB 16.50 270 2 FRB 5.00 270
	SNA 532	532 TG	140	235	160	114	290	344	170	60	470	550	42	35	63,50	22232 K 23232 K	H 3132 H 2332	2 FRB 17.00 290 2 FRB 5.00 290
